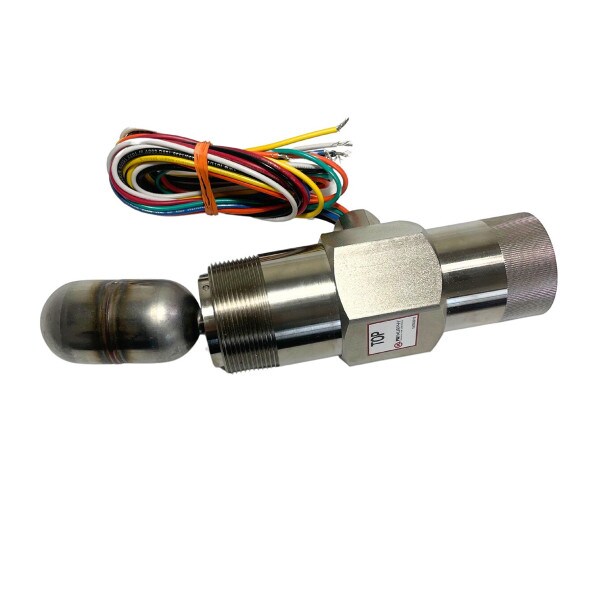

Murphy LS200-D Liquid Level Switch
Details
Murphy Liquid Level Switch LS200 - DPDT wiring
Body: Nickel-plated; optional 316 stainless steel
Float: 304 stainless steel
Pressure Rating: 2000psig (13.8 MPa) [138 bar]
O-ring: Viton
Process Connection: 2” NPT
Temperature Rating: -20° to 300°F (-29° to 149°C)
Electrical: DPDT
Wiring: 18 AWG x 36 in. (1.0 mm2 x 916 mm)
P/N: LS200-D
