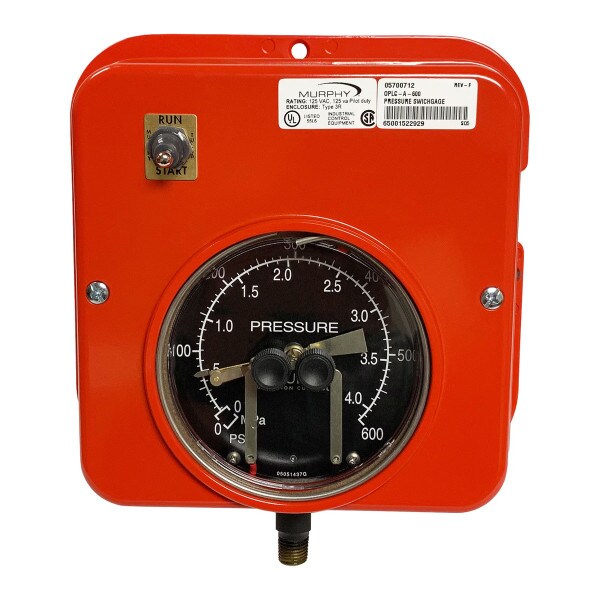

Murphy OPLC-A-600 600psi Pressure Swichgage
Details
Pressure Gage, Murphy, OPLC-A-600, Swichgage® Instruments Case: Die cast aluminum; weatherproof Contacts: See details in the Electrical section, for contact ratings. Dial: 4-1/2 in. (114 mm) white on black, dual scaled psi /kPa Other dial configurations available. Consult factory Gage Accuracy: 2-1-2 ±2% for the first and last quarters of the scale, the middle half is ±1%. Accuracy for P4 & P6 Option: Ranges 100 & 160 PSI; 6% full scale. 200 PSI 6-3-6. All other ranges 3% full scale Geared Movement: 302 and 304 stainless steel Lens: Optically clear polycarbonate Pointer: High visibility with a pointer calibration hub Process Connection: Available in 1/4 NPT and 1/2 NPT, See Table B, Sensing Element: Select from bronze or 316 stainless steel bourdon tube. See Table B for bourdon tube/socket combinations
