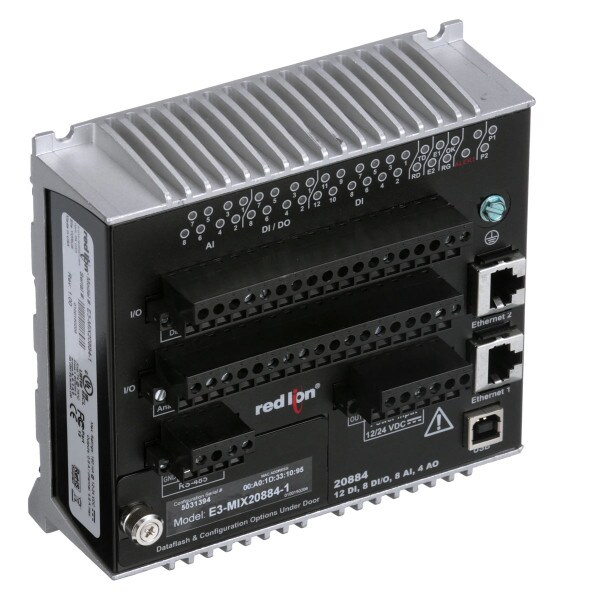

Red Lion E3-MIX20884-1 I/O Module-32 Mixed Inputs/Outputs

Red Lion E3 I/O MODULE-32 MIXED INPUTS/OUTPUTS: Isolated Discerete Input Channels: 1-4 Channels, 5-30 VDC, 2.5k Ohms Input resistance, 9.6 mA Input Current, 1ms Fastest response time, 3.0 VDC On Voltage, 1.5 VDC Off Voltage, 1 mA DC Off Current Non-Isolated Discerete input Channels: 5-12 Channels, 10-30 VDC, 9 VDC On Voltage, 5 VDC Off Voltage, 2 mA DC Off Current, 10K Ohms Input resistance, 3mA input current, 1 ms Fastest response Non-Isolated Combination Discrete Input Channels: 13-20 Channels, 10-30 VDC, 9 VDC On Voltage, 5 VDC Off Voltage, 2 mA DC Off current, 10k Ohms Input resistance, 3mA Input current, 1 ms Fastest responce Discrete Output Channels: 10-30 VDC, .6A per channel (4.8A max), max .01 mA off state leakgae, short circuit protextion, self-reset fuses, 1 mA Min Load, 5 Amps Inrush Current, .4 Ohms resistance, 1ms Scan rate Analog Input Channels: 4-30 mA input range, A/D resolution 16 bits/ 10 bits, Full Scale accuracy +/- .002%, 100 ohms input impedance, self-resetting short circuit protection fuses, DMRR 66 db at 50/60 HZ Configured using Crimson 3.x Software
