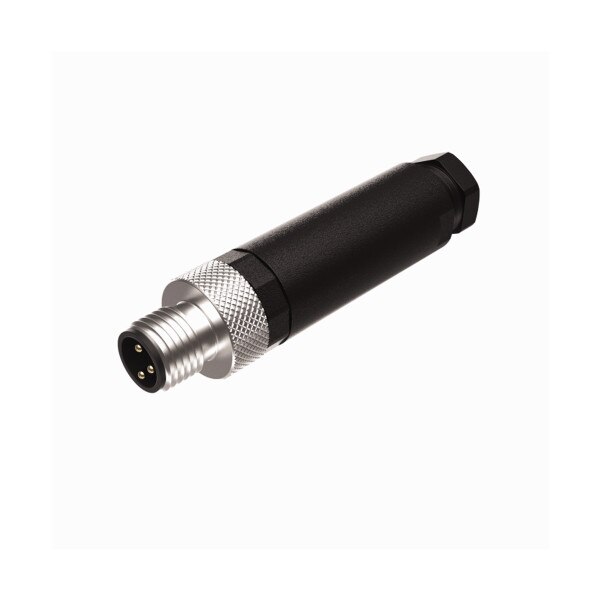

Turck BS 5143-0 Actuator and Sensor Field Wireable
Details
Turck Actuator and Sensor Field Wireable
Connector A:\ Male, M8 × 1, Straight
Design specification Acc. to IEC 61076-2-104
Number of contacts 4
Contacts Brass, CuZn, Gold-plated
Contact carriers: Plastic, PA 66 (UL 94 HB), Black
Connector body: Plastic, PBT, Black
Coupling nut: Brass, CuZn, Nickel-plated
Tightening torque (range): 0.4 … 0.8 Nm (note max. torque of mating connector!)
Acceptable cable diameter: 3.5…5 mm
Core cross-section/Clamping ability: 0.14…0.5 mm²
Core cross-section/terminal capacity 26…20 AWG
Connection mode: Screw/clamp connection
Mechanical life > 100 Mating cycles
Pollution degree: 3
Protection class (When coupled) IP67
NEMA: 1, 3, 4, 6P
Electrical properties at +20 °C
Rated voltage 60 VAC/75 VDC
Current 4 A
Mechanical and chemical properties
Ambient temperature range (static) -40…+85 °C
