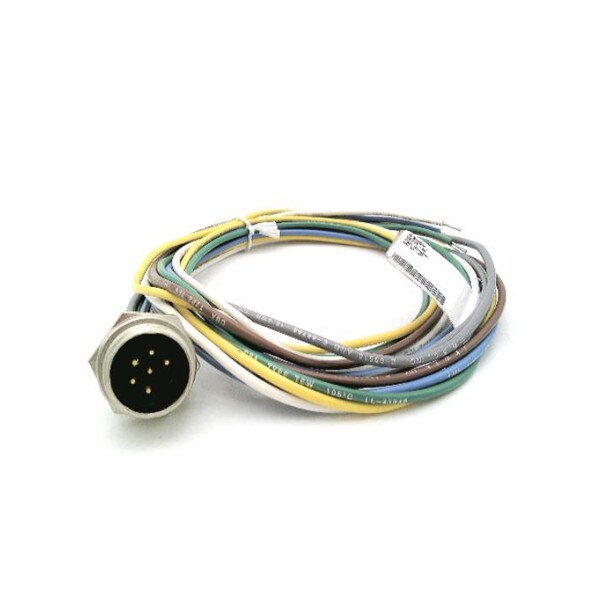

Turck P-RSFV 60 EX-0.5/14.5/NPT Turck 6 Conductor Receptacle
Details
Turck 6 Conductor Receptacle
Length: 50 cm (19 inches).
Connectors:
Pre-equipped with a 6-pin 7/8"-16 UN Minifast male receptacle (male coupling thread).
Panel-mounting thread: 1/2"-14 NPT for secure installation.
Includes bare end flying leads for flexible connectivity.
Conductors:
Wires: 6 x #16 AWG (American Wire Gauge) for enhanced current carrying capacity.
Jacket Material: PVC jacket providing insulation and protection.
Housing Material: Stainless steel for durability and resistance to corrosion.
Electrical Ratings:
Rated Voltage: 600 Vac
Rated Current: 8 A
IP67
NEMA Ratings: NEMA 1, 3, 4, 6P
