Turck P-WSV WKV 562-2176XL-15M Double-ended Cable / cordset - Extermelife-60
Details

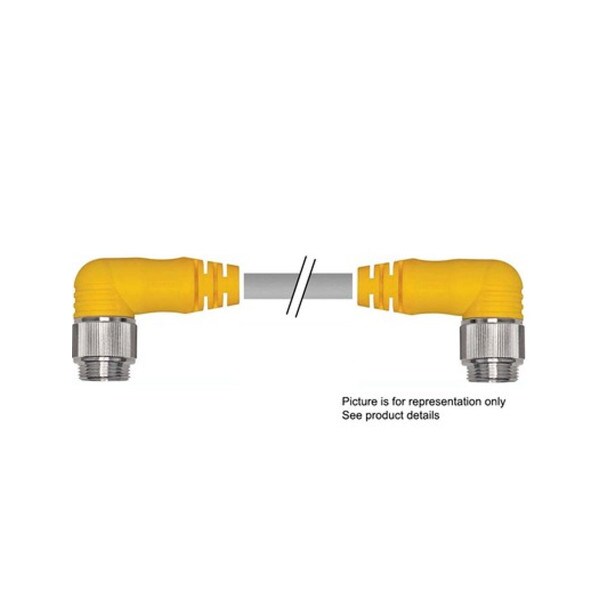

Turck Double-ended Cable / Cordset
Designed with a specially engineered proprietary cable jacket material extremelife-60 cables remain flexible enough to work down to -40°C and carry UL -60°C cold bend and UL/CSA -40°C cold impact listings as well as an FT4 flame rating
Number of Circuits: 5-wire configuration
Rated Current: 9 A
Rated Voltage: 600 Vac
Cable Sheath Outer Diameter (O.D.): 11.2 mm
Color: Black sheath
Connector Type: Right-angled 5-pin 7/8"-16 UN Minifast male connector (male coupling thread), Right-angled 5-pin 7/8"-16 UN Minifast female connector (female coupling thread).
Conductor Cross-section: 5 x #18 AWG (American Wire Gauge)
Length: 15 meters (49 feet)
Degree of Protection: IP67 and IP68 (dustproof and protected against immersion in water), NEMA 1, NEMA 3, NEMA 4, and NEMA 6P, meaning the cable is protected from a variety of environmental factors such as water, dust, and even submersion.
Materials: Stainless steel coupling nut for durability and corrosion resistance, EX60 jacket, designed for extreme environmental conditions.
Climatic Resistance: Rated for Extremelife-60, capable of cold bending down to -60°C (-72°F).
Designed with a specially engineered proprietary cable jacket material extremelife-60 cables remain flexible enough to work down to -40°C and carry UL -60°C cold bend and UL/CSA -40°C cold impact listings as well as an FT4 flame rating
Number of Circuits: 5-wire configuration
Rated Current: 9 A
Rated Voltage: 600 Vac
Cable Sheath Outer Diameter (O.D.): 11.2 mm
Color: Black sheath
Connector Type: Right-angled 5-pin 7/8"-16 UN Minifast male connector (male coupling thread), Right-angled 5-pin 7/8"-16 UN Minifast female connector (female coupling thread).
Conductor Cross-section: 5 x #18 AWG (American Wire Gauge)
Length: 15 meters (49 feet)
Degree of Protection: IP67 and IP68 (dustproof and protected against immersion in water), NEMA 1, NEMA 3, NEMA 4, and NEMA 6P, meaning the cable is protected from a variety of environmental factors such as water, dust, and even submersion.
Materials: Stainless steel coupling nut for durability and corrosion resistance, EX60 jacket, designed for extreme environmental conditions.
Climatic Resistance: Rated for Extremelife-60, capable of cold bending down to -60°C (-72°F).
