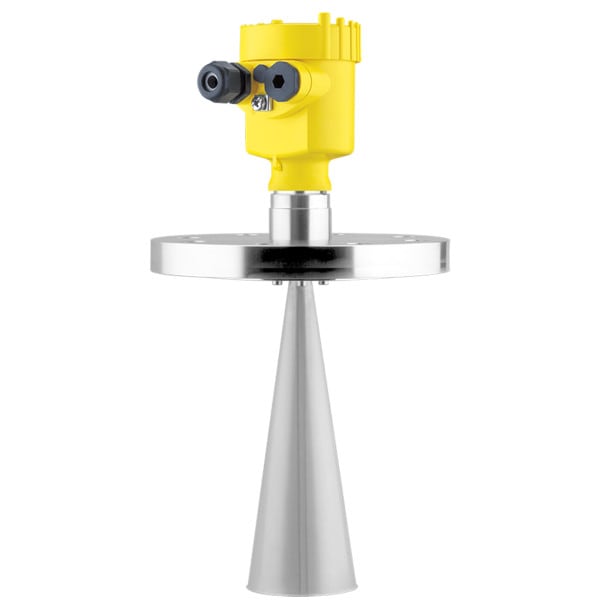

Vega PS62.UDCND2HANXX Radar Sensor

VEGAPULS 62 Radar Sensor for continuous level measurement of liquids Approval directive/ Scope: FM/ USA Approval: FM (XP) CL I, DIV1, GP ABCD, (DIP) CL II, III, DIV1, GP EFG 316L Horn Antenna (ø48mm) Process fitting/ Material: Thread 1-1/2in NPT PN40, ASME B1.20.1/316L Seal/ Process temp: FKM (SHS FPM 70C3 GLT) and PTFE / -40C to +130C Two-Wire 4-20 mA/HART Without Overvoltage protection of the supply cable No Address Setting Aluminium Single Chamber Housing, IP66/IP68(0.2bar) Protection 1/2in NPT Cable entry Max Measuring Range: 114.82 ft Customs tariff number: 90318080
