AT Controls P1S-L1-2400-GSR-XAP Triac® Pneumatic Rack & Pinion Double Acting Actuator Mounted to 24" Power-Seal High Pressure Butterfly Valve
Details
P1S-L1-2400-GSR-XAP

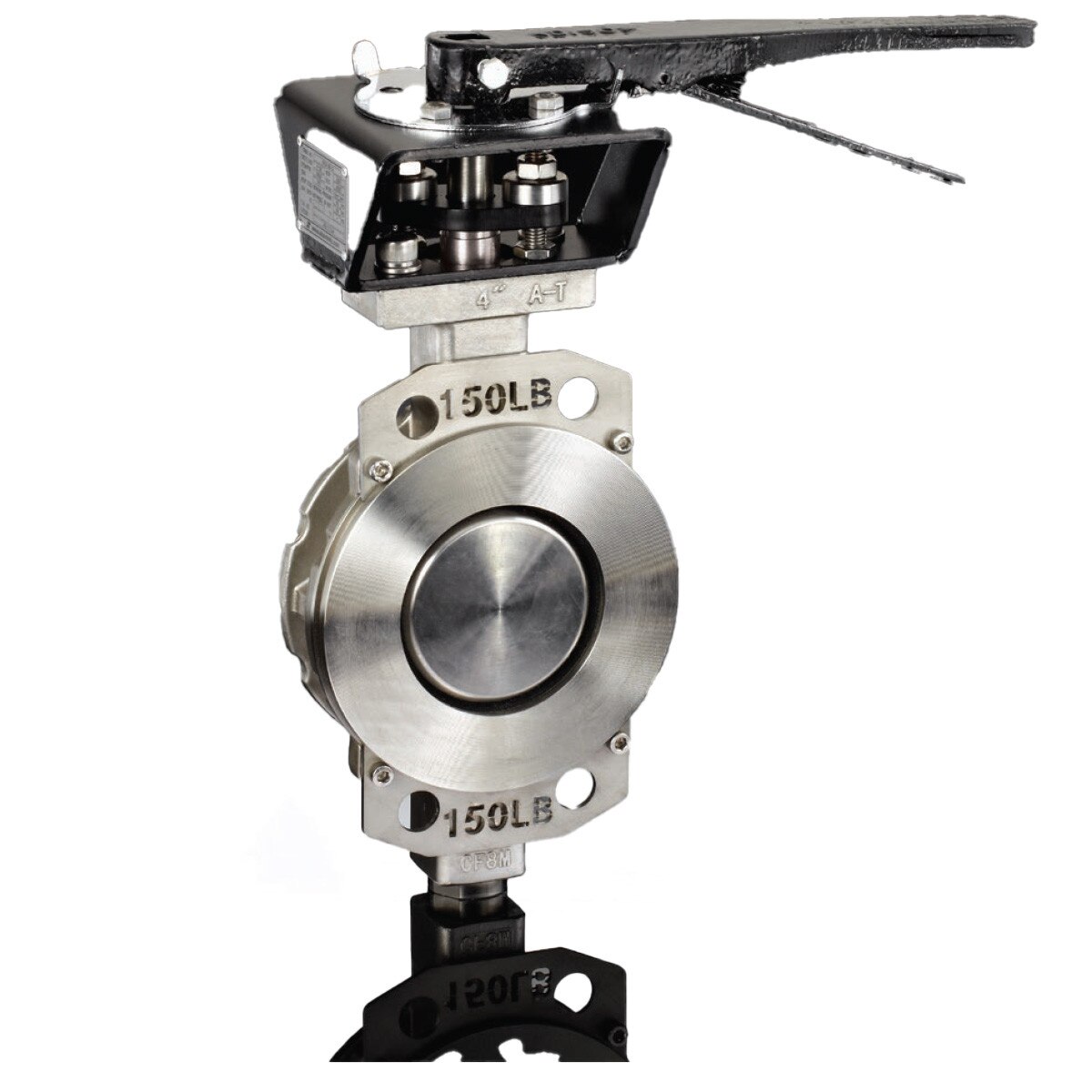

24" Power-Seal HPBFV,
P1S Series,
Class 150 Lug Style,
CF8M Body,
G2TFE Seat,
CF8M Disc,
PTFE Composite Stem Bearing,
17-4 PH Stem,
Type P Packing.
3R3300DA
Triac® Pneumatic Rack & Pinion Double Acting Actuator (Open CCW Close CW)
F16 ISO 5211 Mounting,
1.811" 8-Pointed Star
Nitrile Buna Seals (-5°F ~ +175°F)
TVC6-X421-7N-D24
NAMUR Mount 3/2,
5/2 convertible solenoid with Manual operator,
Dual Coil,
Two Position,
24 VDC,
Class F Coil,
6.9 Watt, 5 Deg F to 77
Deg F,
Explosion Proof Class I,
Div 1 (GRP A - D),
Class II,
Div 1 (GRP E-G),
1/2" NPT Conduit Connection,
1/4" NPT Air Supply Conn's,
1/8" NPT Exhaust Conn's
