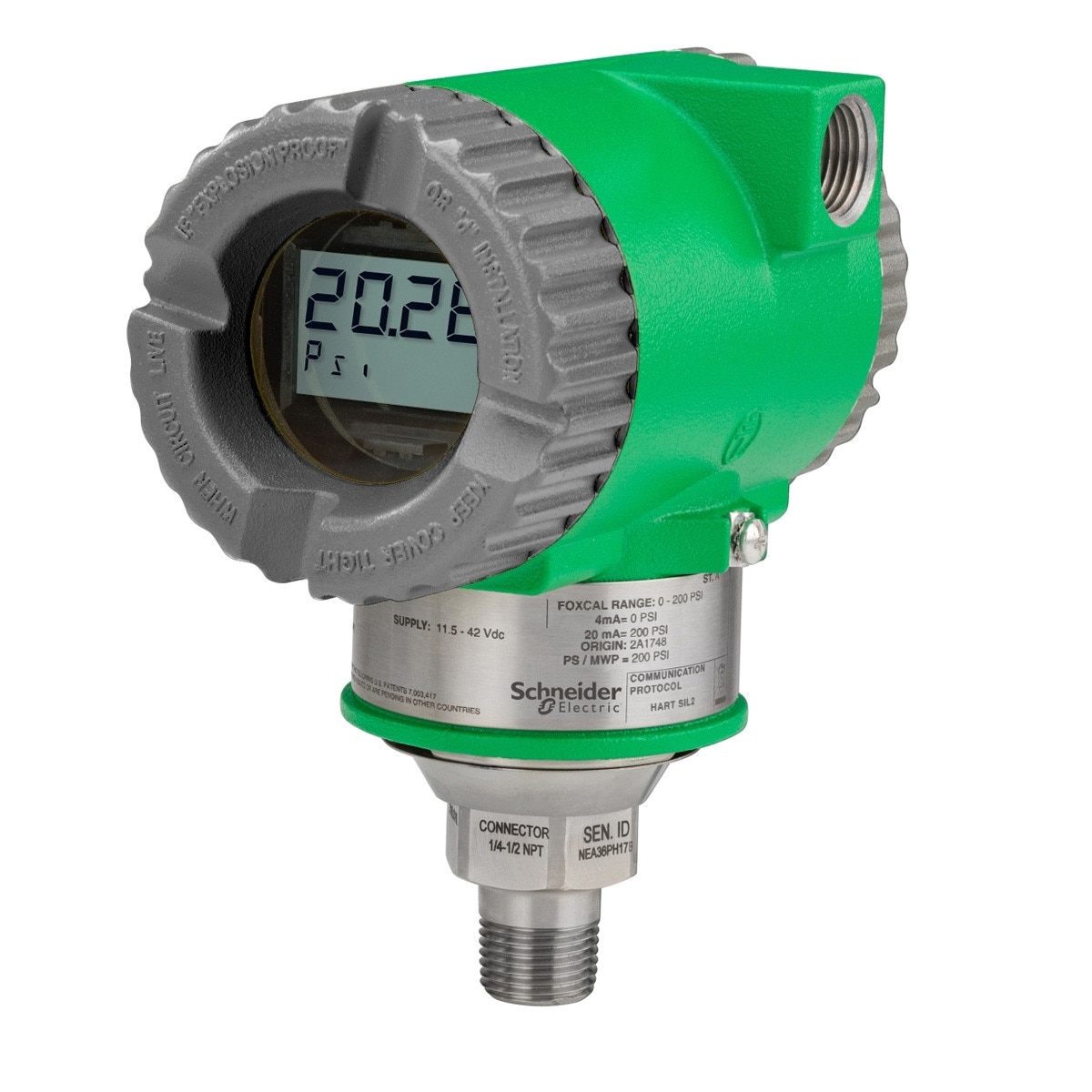

Shneider IGP10S-T52F1FP-L1 5 and 2000psi Gauge Pressure Transmitter
Details
IGP10S-T52F1FP-L1 Foxboro
Advanced Gauge Pressure Transmitter. Measures Pressure and Transmits a Proportional Electrical Signal. Accuracy Expressed as a Percentage of Reading.
ELECTRONIC VERSION AND OUTPUT SIGNAL: Intelligent; Digital HART & 4 To 20 mA
STRUCTURE CODE MATERIALS AND TYPE: 316L ss Process Connection, 316L ss Diaphragm, Silicone Fill Fluid, 1/2 NPT External & 1/4 NPT Internal Thread Connection Type, Flameproof Certification
SPAN LIMITS: Direct Connect Span Limit: 75 and 6000 psi / 0.52 and 41.4 Mpa
CONDUIT CONNECTION & HOUSING MATERIAL: 1/2 NPT Conduit Connection, Both Sides, Aluminum Housing
ELECTRICAL SAFETY: FM Multiple Certifications (includes FM Codes FA, FD or FN)
OPTIONAL MODEL SUFFIX(ES) INCLUDED: Digital Indicator, Internal Pushbuttons, And Window Cover
Advanced Gauge Pressure Transmitter. Measures Pressure and Transmits a Proportional Electrical Signal. Accuracy Expressed as a Percentage of Reading.
ELECTRONIC VERSION AND OUTPUT SIGNAL: Intelligent; Digital HART & 4 To 20 mA
STRUCTURE CODE MATERIALS AND TYPE: 316L ss Process Connection, 316L ss Diaphragm, Silicone Fill Fluid, 1/2 NPT External & 1/4 NPT Internal Thread Connection Type, Flameproof Certification
SPAN LIMITS: Direct Connect Span Limit: 75 and 6000 psi / 0.52 and 41.4 Mpa
CONDUIT CONNECTION & HOUSING MATERIAL: 1/2 NPT Conduit Connection, Both Sides, Aluminum Housing
ELECTRICAL SAFETY: FM Multiple Certifications (includes FM Codes FA, FD or FN)
OPTIONAL MODEL SUFFIX(ES) INCLUDED: Digital Indicator, Internal Pushbuttons, And Window Cover
