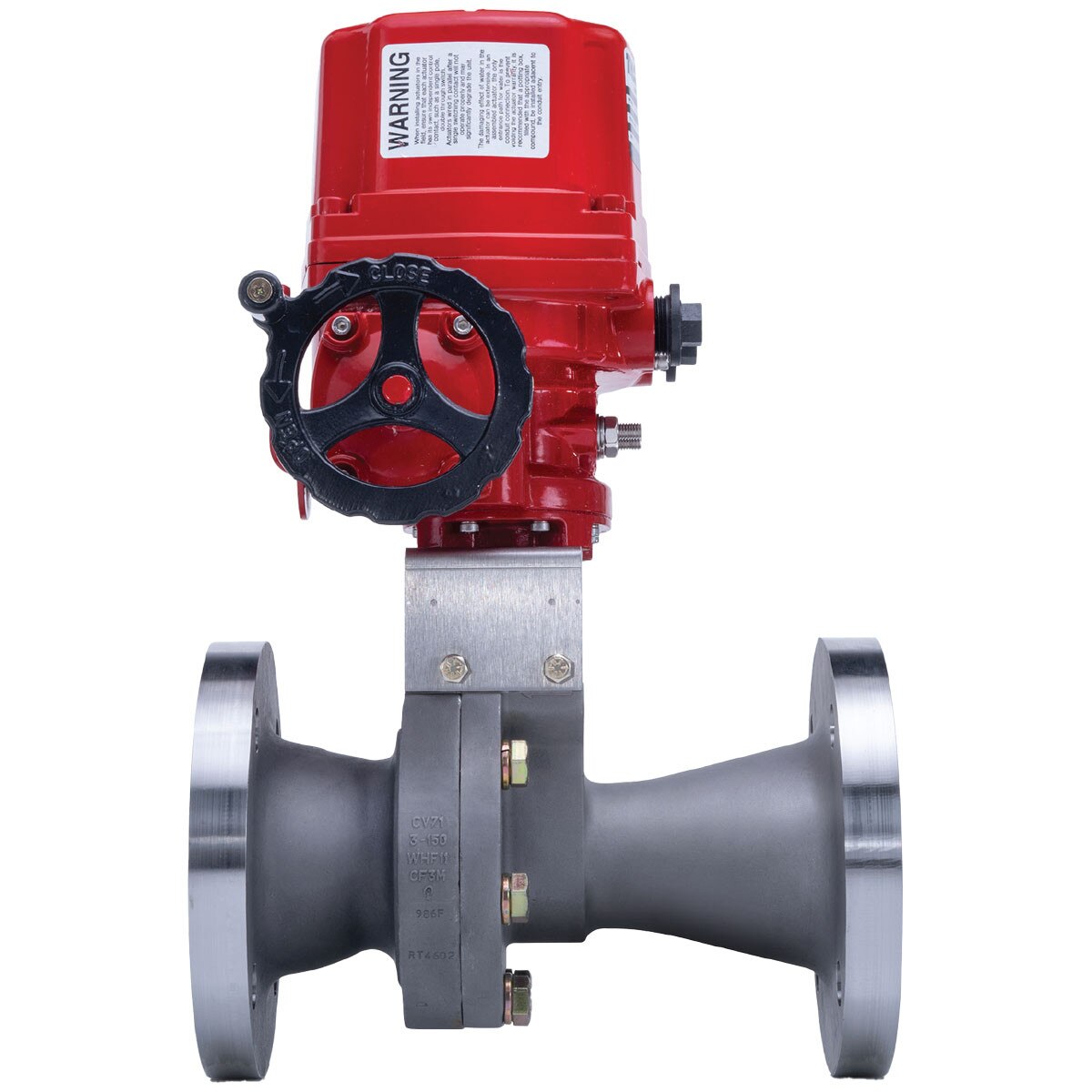

Clarke Valve DDGS-2RF300-CF3M-A-CV71-DAXDD-STTN-B8 2" CL300 Clarke CV71

DDGS-2RF300-CF3M-A-CV71-DAXDD-STTN-B8

---

Dilating Disk Valve/Demo Valve

---

Zero Emissions Stem Seal

---

End Connection: 2 inch Class 300 Raised Face Flange

---

Face to Face (inches) - 10.5 (ISA 75.08)

---

Body & Bonnet Material: CF3M

---

Petal Material: 316L + No Coating

---

Arm Material: 17-4 H900

---

Stem Material: 17-4 H900

---

Pressure Boundary Bolt Material: A193 (B8)

---

Body & Bonnet Seals: FKM

---

Stem Seals: SES & FKM

---

ID Seals: Accrolon

---
