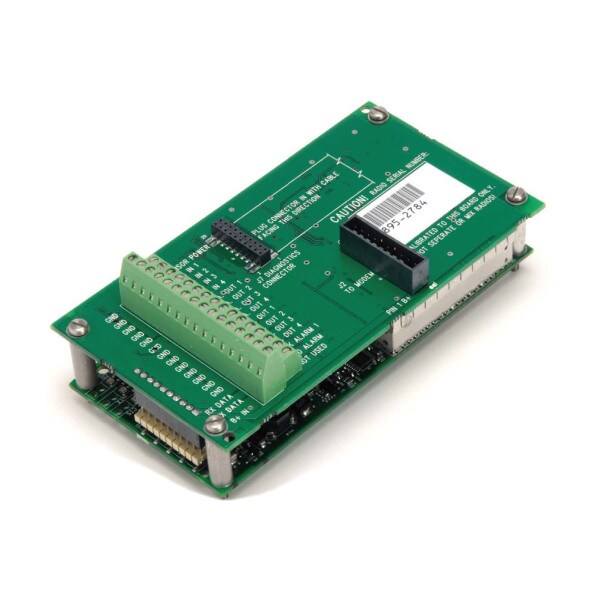

FreeWave FGRIO-M 900MHz Industrial Radio

900 MHz Industrial Radio, 902 to 928 MHz (FHSS) Transmitter Frequency Range, Class 1 Division 2, Separate 20-pin PCB header The FGRIO-M System provides outstanding performance and versatility in wireless transmission of process-control signals. FGRIO-M offers “transparent” acquisition, transport and reconstruction of analog, digital and power signals, eliminating the need for associated buried wiring. The RTU requires no altered programming. The FGRIO-M is Class 1 Division 2 Approved and is lower-cost and provides better signal integrity than vulnerable wiring. Radio is designed, manufactured and tested in Boulder, CO. Features: • Wire Replacement: FGRIO system accuracy is not diminished by distance as it may be in wired systems • Gateway Radio: Mirrors signals for up to 4 Endpoints and provides link and command alarm signals Endpoint • Radio: Accepts 2 digital inputs, 2 analog inputs and switches 2 digital outputs • Frequency Hopping: Communication and diagnostics between the I/O Gateway and the I/O Endpoints • Low Latency: Less than one second signal delay • High Accuracy: FGRIO systems analog signal fidelity is factory calibrated and drift with time and temperature is much less than that of transducers • Low Power: Suitable for solar powered installations • Error-Free Communications: 32 bit CRC with automatic retransmission Application: • Oil & gas • Agriculture • Utilities • Defense • Scada • Mining • Fleet management • Municipal • Enterprise
