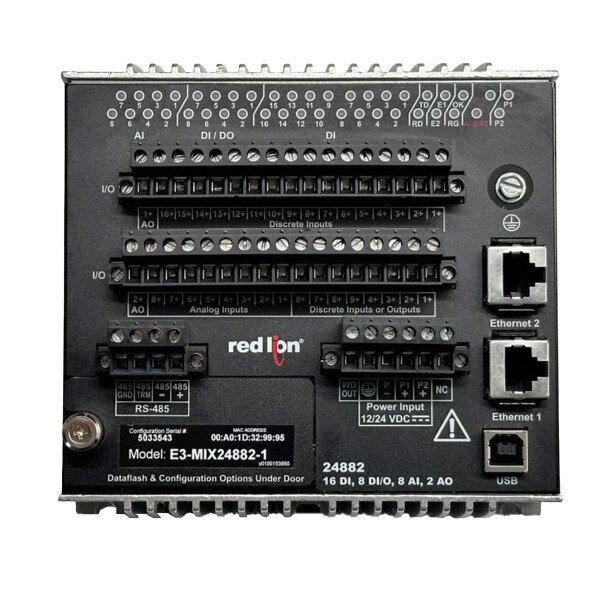

Red Lion E3-MIX24882-1 I/O Module-34 Mixed Inputs/Outputs

Red Lion E3 I/O MODULE-34 MIXED INPUTS/OUTPUTS: Discrete Input Channels: 9 VDC On Voltage, 5 VDC Off Voltage, 2 mA DC Off Current, 10 Kohms input resistance, 3 mA Input Current, Input protection, 1 ms Scan rate, 1 ms Fastest response, up to 50 KHz on Channels 1 and 2 Discrete output Channels: 10-30VDC, .6A per channel (4.8A MAX), Channels at 24 VDC, .01 mA Max off state leakage, short circuit protection (self-reset fuses), Min load 1 mA, Inrush Current 5 Amps, .3 Ohms resistance, 1 ms Scan rate Analog Input Channels: 4-20 mA, A/D resolution 16 bit 10 bit, +/- 0.02% Full Scale Accuracy, 100 ohms Input impedance, Self-resetting short circuit protection fuses, DMRR 66 db 50/60 Hz Analog output Channels: 4-20mA, D/A Resolution 16 bits, +/- 0.02% Full Scale Accuracy, 5ms max outpt settling time, 0-750 Ohms load resistance at 24V , 300 Ohms Load resistance, Current limiting short circuit protection Configured using crimson 3.x Software
