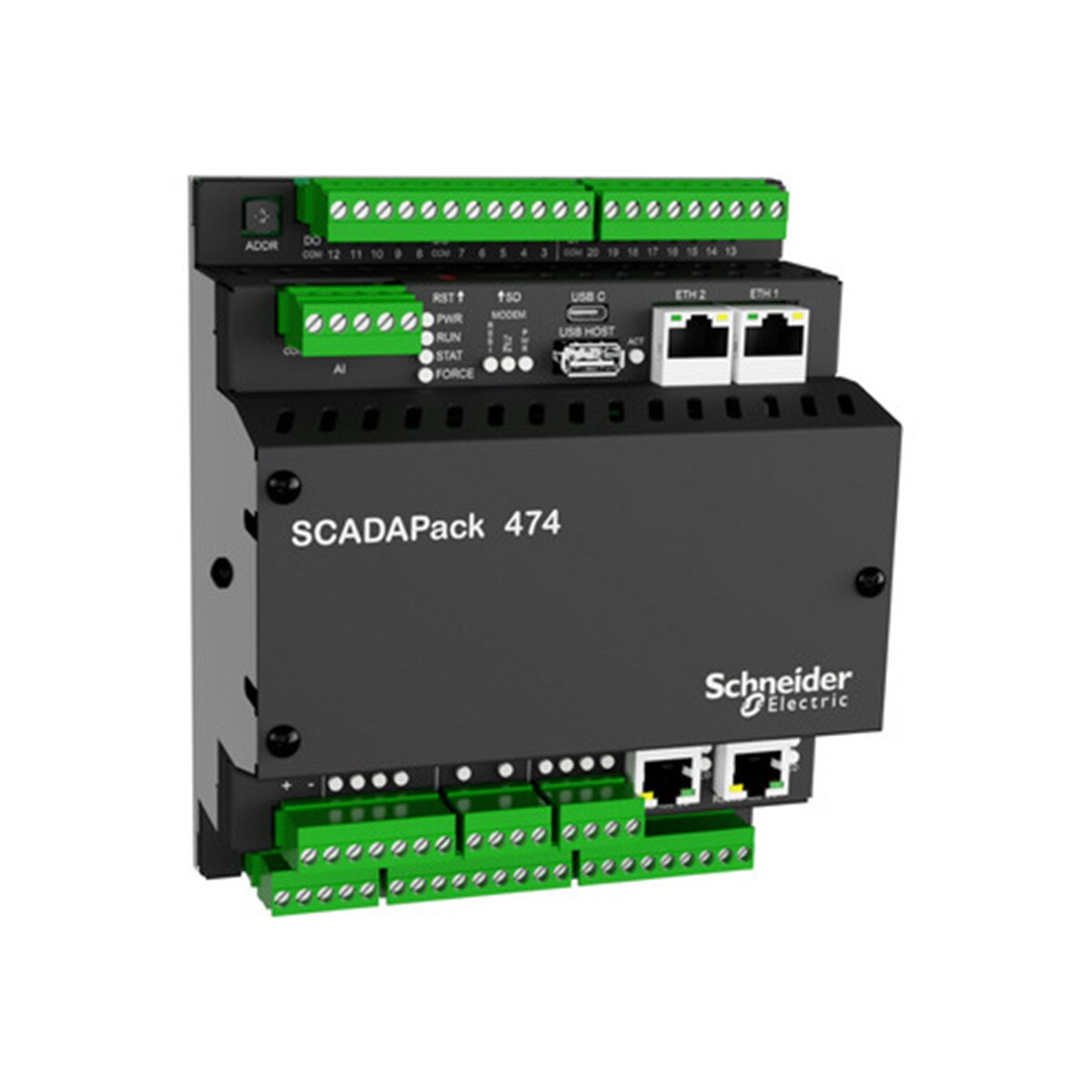

Schneider Electric TBUP474-UA50-BB0V SCADAPack 474 High-Perofrmance 32-Bit Controller
Details
Schenider Electric SCADAPack 474, High-Performance 32-bit Controller with dula-processing capabllities.
Key features
32-bit Dual-Core Controller: High-performance processing for demanding applications.
I/O Expansion:
8 analog inputs: Selectable as 0-20 mA, 4-20 mA, 0-5 V, or 1-5 V.
2 analog outputs: Selectable as 0-20 mA or 4-20 mA.
16 digital inputs: 12/24 V DC.
10 digital outputs: Dry contact relays.
SCADAPack x70 Firmware: Advanced control and communication features.
Standard Security: Includes DNP3 Secure Authentication (Version 2), ensuring secure communication with the Security Administrator application.
Supports up to 20 runs, handling a combination of gas, liquid, or water applications.
Gas runs: Include gas transmission options, making it suitable for gas flow measurement and management in addition to liquid and water flow.
Safety Standards:
UL & CSA 61010-2-201.
FCC 47 CFR Part 15 Subpart B.
ICES-003, CE, and RCM markings.
cULus Non-Incendive Electrical Equipment for use in Class I, Division 2, Groups A, B, C, D.
ATEX II 3G (Ex ec nC IIC T4 Gc): Compliant with EN IEC 60079-0, EN IEC 60079-7, and EN IEC 60079-15.
Key features
32-bit Dual-Core Controller: High-performance processing for demanding applications.
I/O Expansion:
8 analog inputs: Selectable as 0-20 mA, 4-20 mA, 0-5 V, or 1-5 V.
2 analog outputs: Selectable as 0-20 mA or 4-20 mA.
16 digital inputs: 12/24 V DC.
10 digital outputs: Dry contact relays.
SCADAPack x70 Firmware: Advanced control and communication features.
Standard Security: Includes DNP3 Secure Authentication (Version 2), ensuring secure communication with the Security Administrator application.
Supports up to 20 runs, handling a combination of gas, liquid, or water applications.
Gas runs: Include gas transmission options, making it suitable for gas flow measurement and management in addition to liquid and water flow.
Safety Standards:
UL & CSA 61010-2-201.
FCC 47 CFR Part 15 Subpart B.
ICES-003, CE, and RCM markings.
cULus Non-Incendive Electrical Equipment for use in Class I, Division 2, Groups A, B, C, D.
ATEX II 3G (Ex ec nC IIC T4 Gc): Compliant with EN IEC 60079-0, EN IEC 60079-7, and EN IEC 60079-15.
