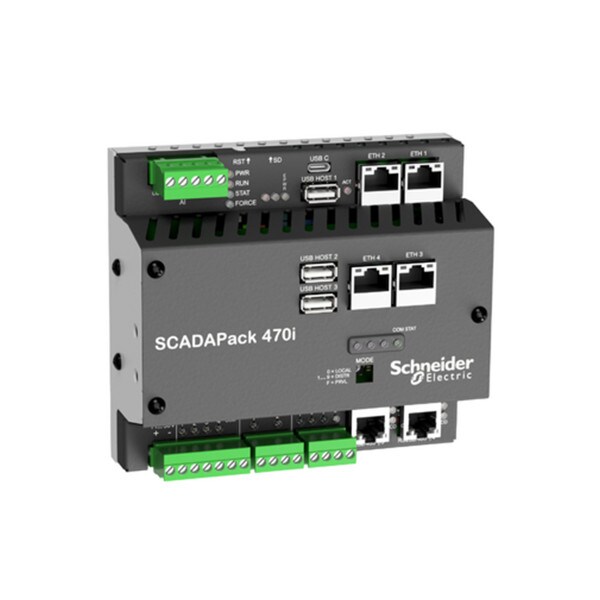

Schneider Electric TBUP470I-IA50-AA00 SCADAPack 47x | 47xi Remote Terminal Unit
Details
Schneider Electric SCADAPack 47x | 47xi, Remote Terminal Unit (RTU) for industrial automation and control applications, particularly in the oil & gas, water & wastewater, and energy sectors.
Key Features:
Product Type: Remote Terminal Unit (RTU).
Market Segments: Oil and Gas. Water and Wastewater. Energy.
Sensor Type: ARM Cortex-A7 dual-core processor at 500 MHz for real-time processing., ARM Cortex-A7 dual-core processor at 500 MHz for Linux edge applications.
Real-Time Processor: 4MB SRAM< 256 MB DDR3 RAM, 256 MB NAND Flash, 70 MB data storage
Linux Edge application: 1 GB DDR3 RAM, 1 GB NAND Flash, 500 MB data storage
Programming: Supports C/C++ applications, Node-RED, containerized applications, and custom web applications.RemoteConnect configuration software for easy setup.
Software Development: Linux development with C/C++ and Python, Logic development via five IEC 61131-3 languages, Advanced diagnostics for troubleshooting and monitoring.
Protocols: OPC UA, MQTT over TLS, Sparkplug B, Modbus, DNP3 level 4, IEC 60870-5-104, FTP, Telnet, SFTP, SSL, SSH.
Data Logging: Supported for DNP3/IEC 104
Ethernet Ports: 4 x 10/100 Mbps (RJ45).
Serial Ports: 2 x RS485 (115.2 kbps), 2 x RS232/RS485 (115.2 kbps).
USB ports: 3 x USB 2.0 Type-A, 1 x USB 2.0 Type-C.
Security Features: IP firewall, Achilles certified for secure communication, DoS prevention, HTTPS, SSL, SSH. IEC 62442-4-2 SL1 compliance for system security, Certificate-based authentication and password protection.
I/O Types
Digital Inputs: 4 inputs (12-24 V DC).
Analog Inputs: 4 inputs (0-20 mA, 4-20 mA, 0-5 V, 1-5 V).
Counter Inputs: 4 x 10 kHz.
Digital Outputs: 2 outputs (30 V, 1 A).
