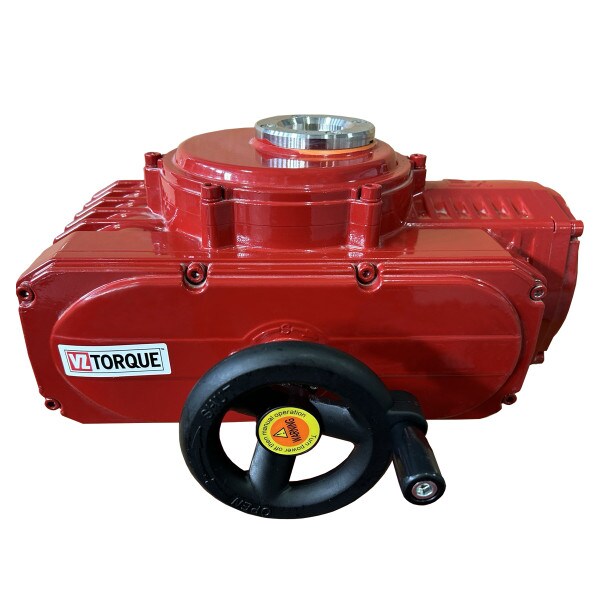

VZTorque VZT-26550-140-U-24DC-XP-B 26550in-lbs Electric Actuator
Details
VZTorque Electric Actuator
26,550 in-lbs
24VDC Power
CSA DIV1 XP with universal control/feedback including on/off, 4-20, or modbus
Lithium Battery backup Failsafe
7.5amps
Full load stroke time=170 sec
No load stroke time=136 sec
Includes Heater, low temp grease, and overtorque switch
1/4 Turn with Handwheel
26,550 in-lbs
24VDC Power
CSA DIV1 XP with universal control/feedback including on/off, 4-20, or modbus
Lithium Battery backup Failsafe
7.5amps
Full load stroke time=170 sec
No load stroke time=136 sec
Includes Heater, low temp grease, and overtorque switch
1/4 Turn with Handwheel
