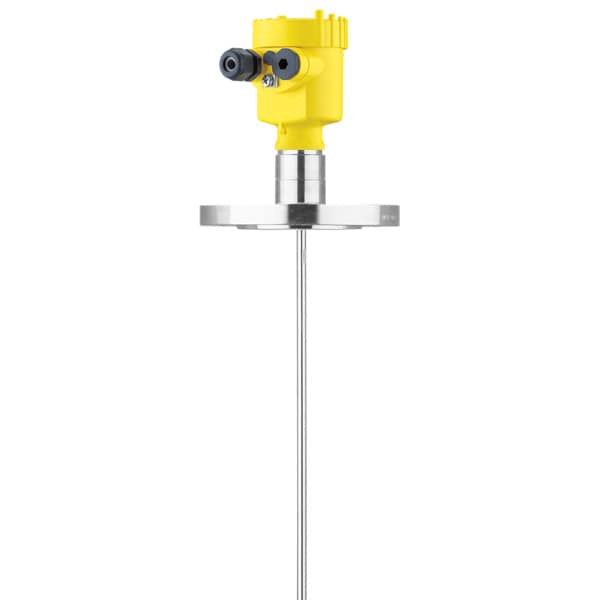

Vega FX81.FEETGGHXANKX-90in Guided Wave Radar Level Sensor

VEGAFLEX 81 - Guided Wave Radar for measuring the level or interface of liquids. Order Code: US70419649 Scope: USA Approval: FM (XP) CL I , DIV1, GP ABCD Version / Material: Exchangeable rod (ø8mm) / 316L Mounted Probe 90in from seal surface process fitting / Material: Thread 1NPT PN40, ASME B1.20.1 / 316L FKM (SHS FPM 70C3 GLT) Seal, with Second line of defense, Process temp: -40C to 150C Electronics: Two-Wire 4-20mA/HART Without Supplementary electronics and Overvoltage protection of the supply cable Aluminium single chamber Housing, IP66/IP68(0.2bar) protection Mounted Dispay wiht Bluetooth, Magnetic Pen operation Foil Label without measurement loop identification label Process pressure: -1bar to 40bar Customs tariff number: 90261029
