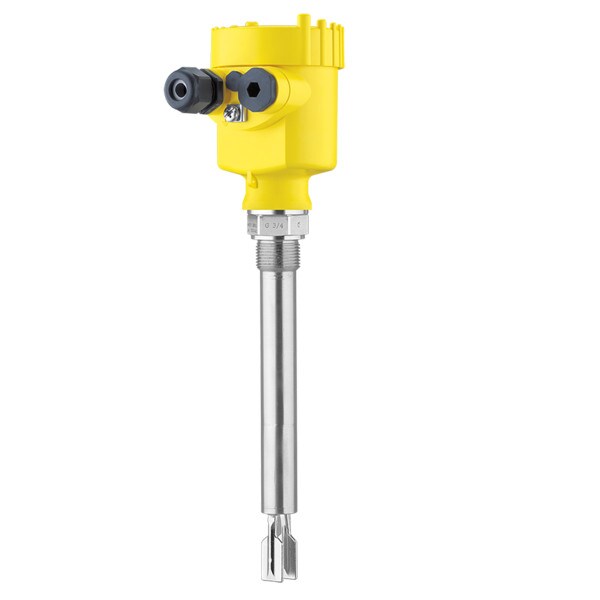

Vega SWING63.DUNBVXUR-6in Vibrating Level Switch

VEGASWING 63 - Vibrating Level Switch with tube extension for liquids. Order code: US31830721 Approval directive / Scope: FM / USA SIL qualification with Safety Manual Process temp: -50c to 150C 6in from seal surface Process fitting / Material: Thread 3/4NPT PN64, ASME B1.20.1 / 316L Electronic: Relay (DPDT) 20 to 72 VDC / 20 to 253 VAC (3A) Aluminium single chamber Housing, IP66/IP67 Protection, 1/2NPT Cable gland Standard sensitivity (from density 0.7 g/cm³) Overflow protection Customs tariff number: 90261029
